Studio 4
This project involved creating a detailed 3D model and lighting plot for Studio 4 to support my work as Lighting Director for the production TOP VOICES. Due to limited initial information about the space, I conducted a site survey and used the resulting data to build an accurate 3D visualization in Vectorworks, enabling me to design an effective and flexible lighting plan.
Position Role
Draftsperson
Software Used
Vectorworks
PROJECT INFO
Client
University of Southern California
Year
05
2024
Project Overview

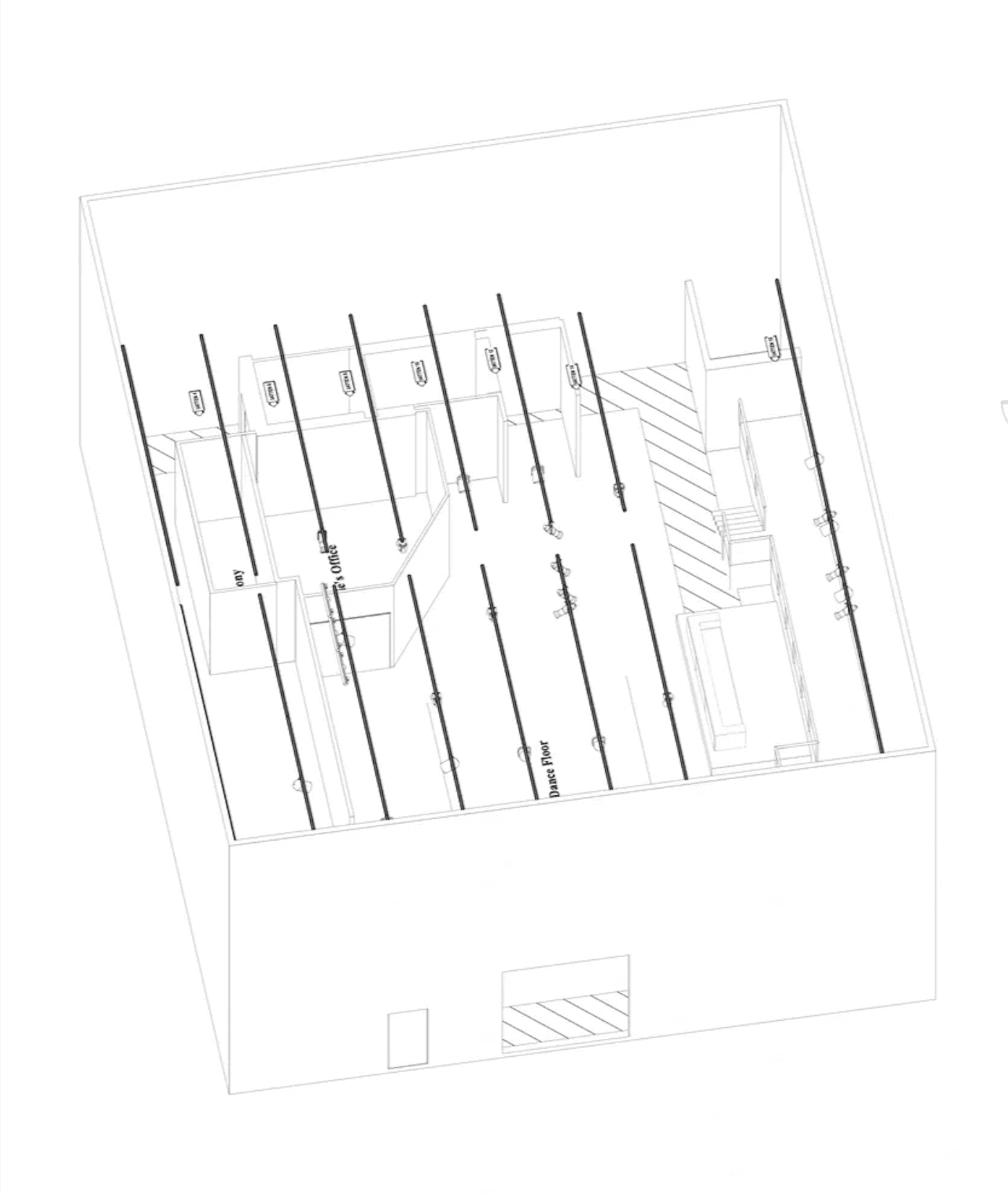

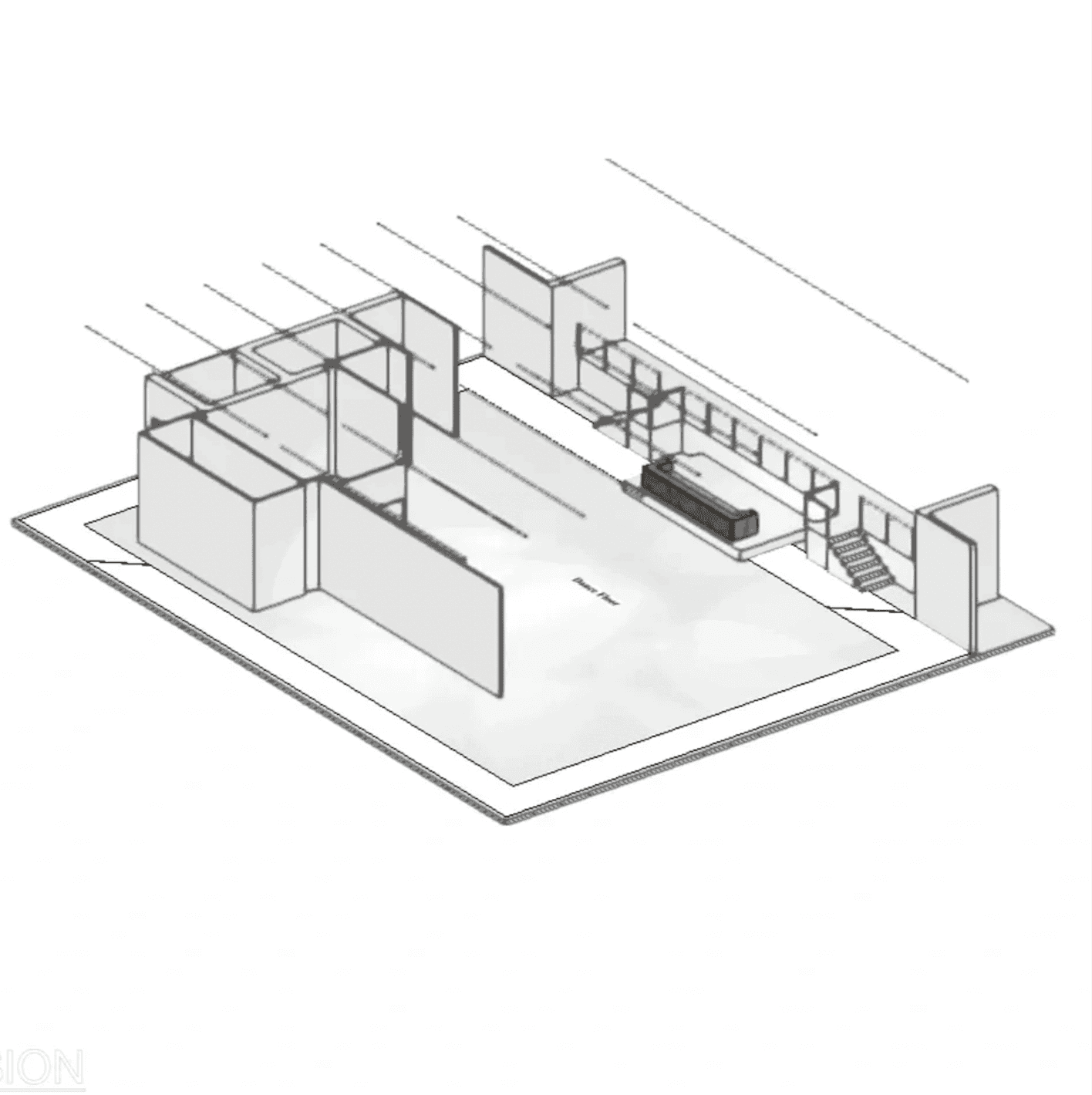

t the start of this project, I joined the production team of TOP VOICES as their Lighting Director. Initially, I was provided with very little information about Studio 4—the venue where the event would take place—which presented a challenge in developing a lighting design without a clear understanding of the space. In late February 2024, I was given the opportunity to conduct a walkthrough of Studio 4. During this site visit, I gathered essential information including room dimensions, the location of battens, available lighting inventory, and technical specifications. This hands-on preparation was critical to establishing a foundation for the design process. Using the collected data, I immediately began constructing a detailed 3D model of Studio 4 in Vectorworks. This model allowed me to experiment with different lighting approaches and develop a preliminary light plot tailored to the space’s specific features
Role & Responsibilities
Conducting the site survey of Studio 4, gathering technical specifications, building a complete 3D model in Vectorworks, and designing a preliminary lighting plot. I also collaborated with the production team to ensure the lighting design supported the creative vision of TOP VOICES.
Workflow

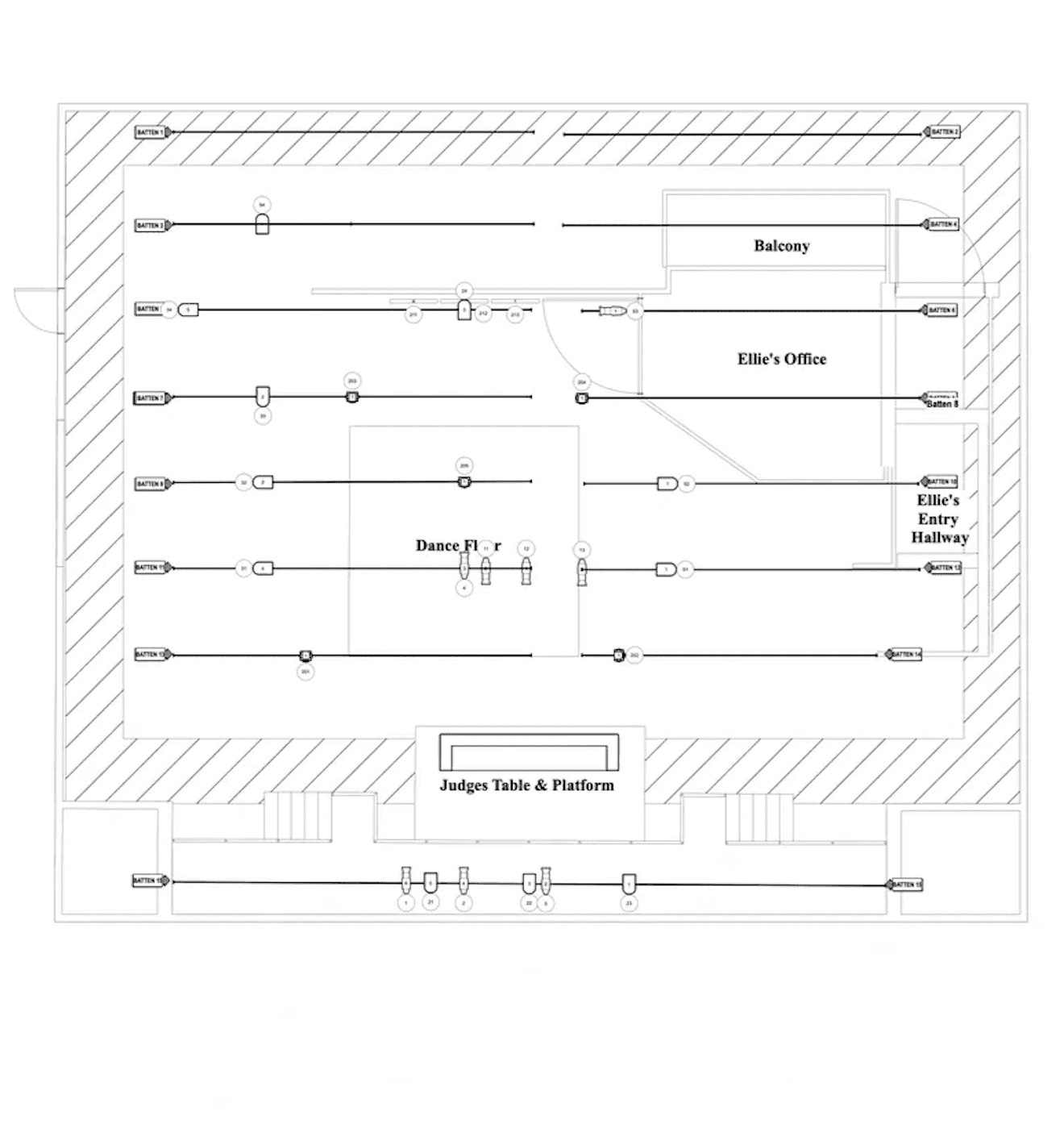

I began the project by reviewing the limited initial information provided about Studio 4. Once access was granted, I conducted a site walkthrough, taking measurements, documenting battens and lighting positions, and recording available inventory and technical details. Using this information, I built a detailed 3D model in Vectorworks, which I used to design and iterate on a lighting plot. I created several side view versions of the design to refine fixture placement and coverage, ultimately delivering a clear and actionable lighting plan for the production.
