Kerckhoff Hall
This project involved creating a detailed 3D model and lighting plot of Kerckhoff Hall as part of the lighting design process for Ghosts of USC, an immersive theater production staged by the USC School of Dramatic Arts. The model supported both creative conceptualization and technical planning for the event.
Position Role
Draftsperson
Software Used
Vectorworks, EOS, Blender
PROJECT INFO
Client
University of Southern California
Year
10
2023
Project Overview

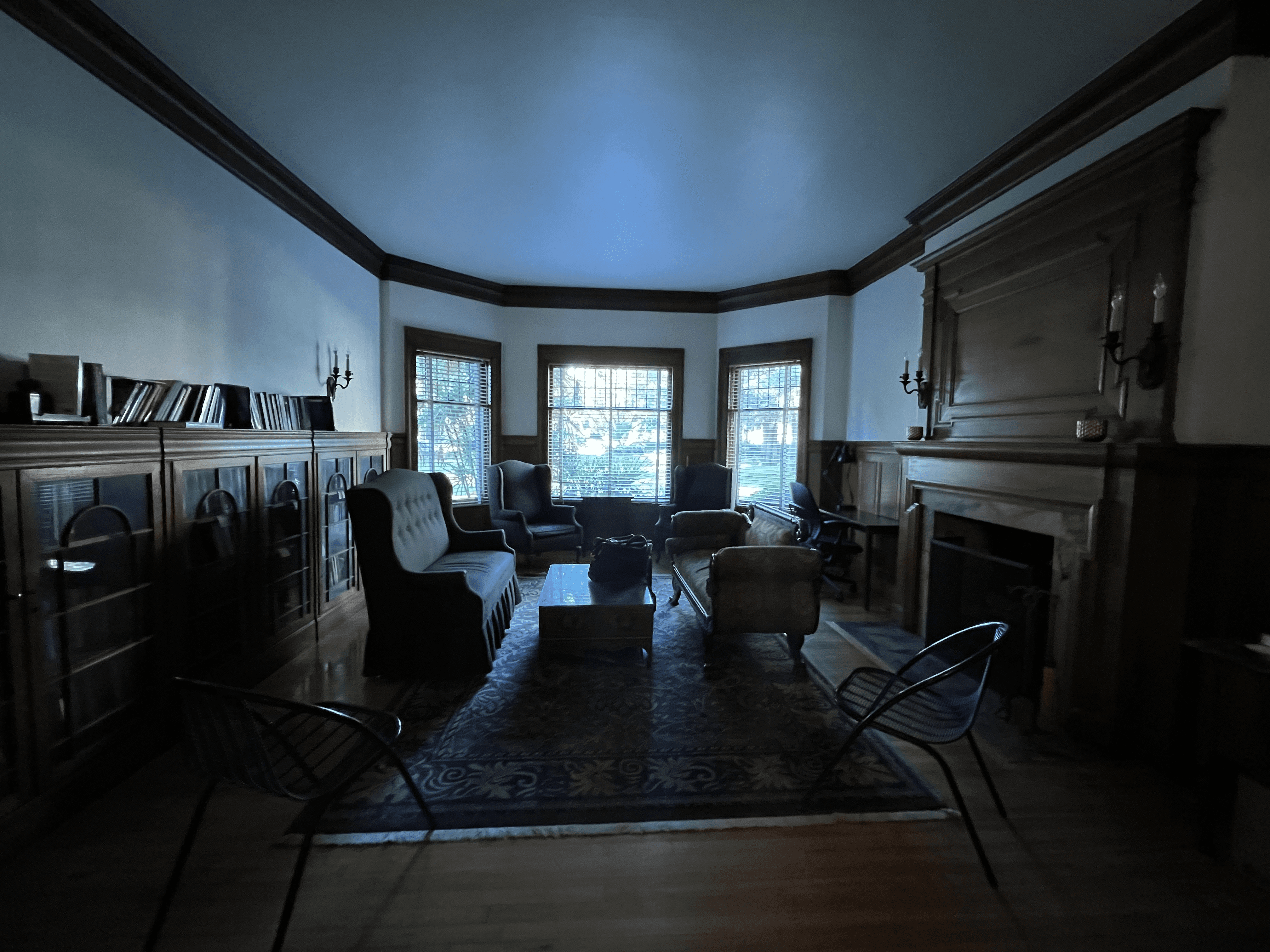

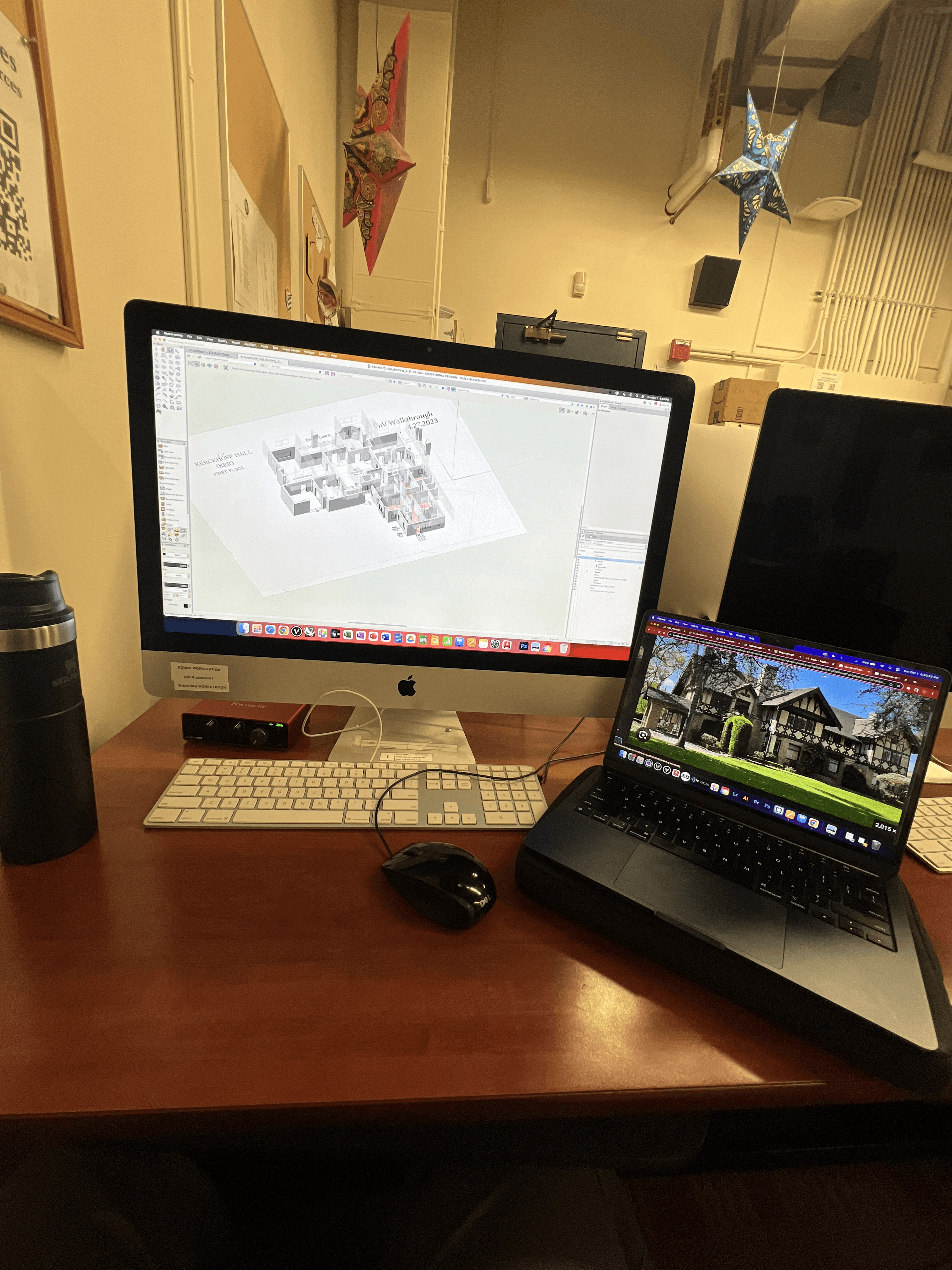

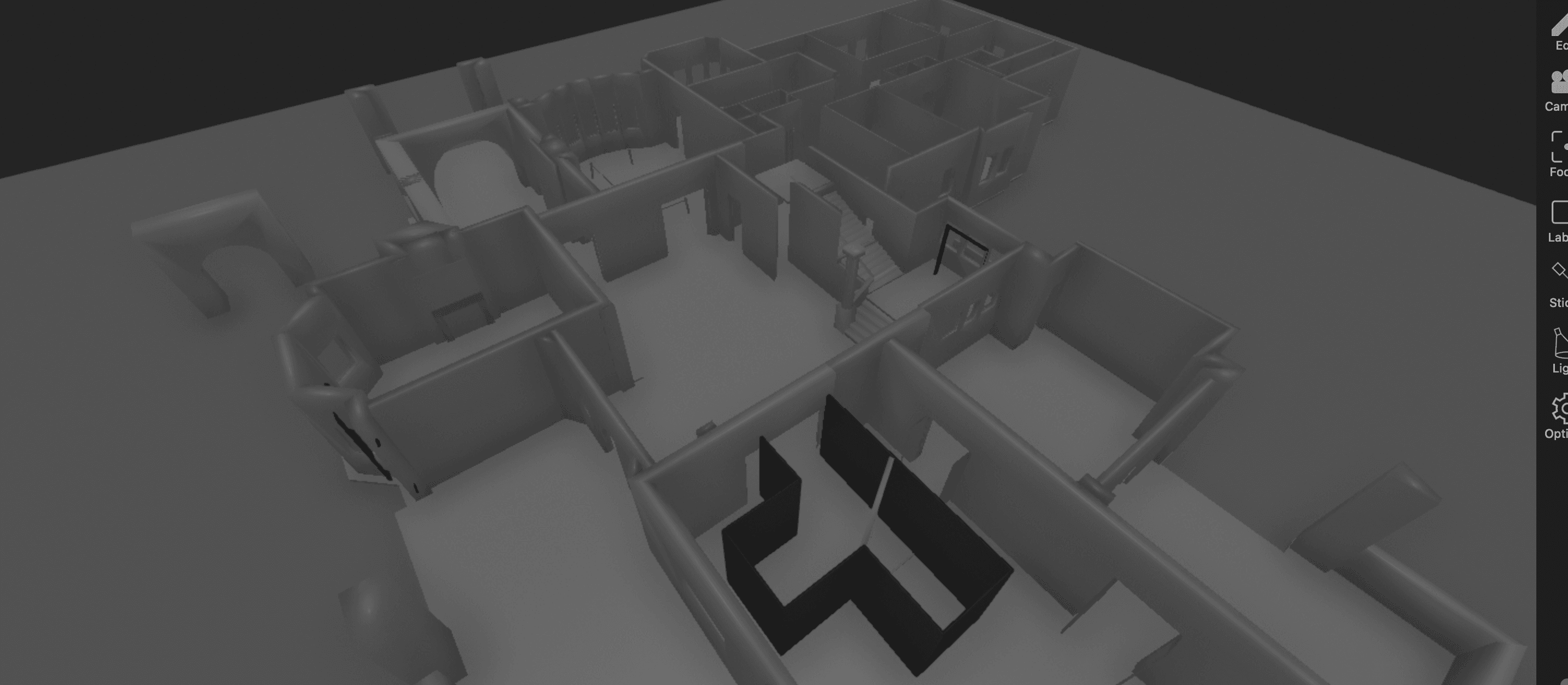

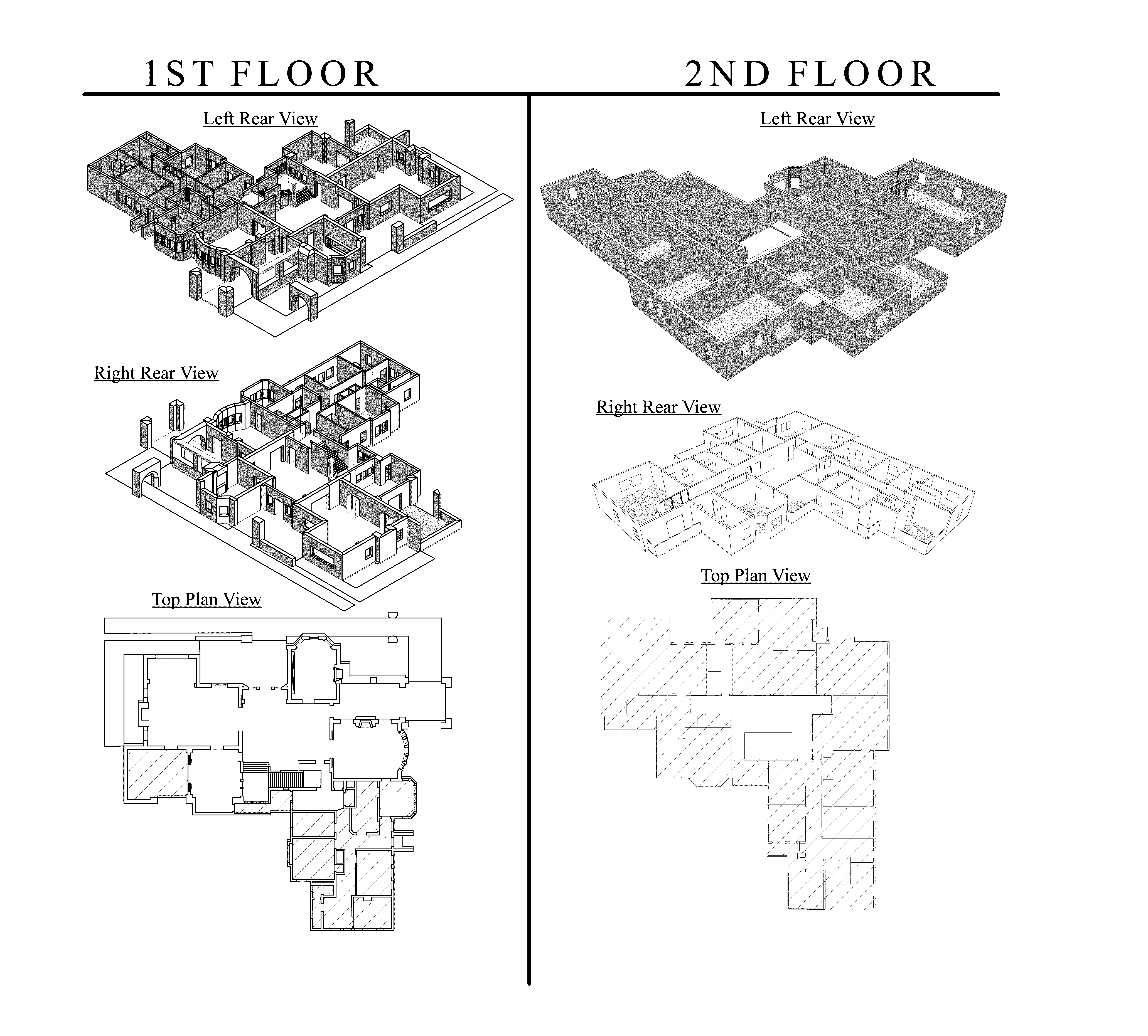

From August through October 2023, I served as lighting designer for Ghosts of USC, an immersive production staged throughout Kerckhoff Hall. Early in the design process, it became clear that an accurate digital model of the space would be essential to plan the complex lighting needs of this site-specific event. During our first walkthrough in August, I conducted a detailed photographic survey of every room and architectural feature, using these images as creative reference points for designing the immersive experience. To begin building the model, I sourced the original 1997 floor plan of Kerckhoff Hall created by K&S Design Team and used it as a structural guide. Over the following weeks, I combined this floor plan with the photographic reference material to create a fully realized 3D model in Vectorworks with the help from USC staff, Joe Shea.This model allowed me to previsualize lighting angles, fixture placement, and cue flow across multiple rooms—critical in an event where the audience would move throughout the space. The final 3D render became a central design tool used in developing the lighting plot and communicating technical needs to the broader production team. The experience also deepened my ability to integrate architectural modeling with lighting design in support of immersive theater.
